Example with Matplotlib

The mother of all matplotlib figures.

# This code is a copy of the following example:
# https://matplotlib.org/stable/gallery/showcase/anatomy.html

import numpy as np
from pylatex import NoEscape
from latexdocs import Document
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib.patheffects import withStroke
from matplotlib.ticker import AutoMinorLocator, MultipleLocator

doc = Document()

royal_blue = [0, 20/256, 82/256]

# make the figure

np.random.seed(19680801)

X = np.linspace(0.5, 3.5, 100)
Y1 = 3+np.cos(X)
Y2 = 1+np.cos(1 + X / 0.75) / 2
Y3 = np.random.uniform(Y1, Y2, len(X))

fig = plt.figure(figsize=(7.5, 7.5))
ax = fig.add_axes([0.2, 0.17, 0.68, 0.7], aspect=1)

ax.xaxis.set_major_locator(MultipleLocator(1.000))
ax.xaxis.set_minor_locator(AutoMinorLocator(4))
ax.yaxis.set_major_locator(MultipleLocator(1.000))
ax.yaxis.set_minor_locator(AutoMinorLocator(4))
ax.xaxis.set_minor_formatter("{x:.2f}")

ax.set_xlim(0, 4)
ax.set_ylim(0, 4)

ax.tick_params(which='major', width=1.0, length=10, labelsize=14)
ax.tick_params(which='minor', width=1.0, length=5, labelsize=10,
               labelcolor='0.25')

ax.grid(linestyle="--", linewidth=0.5, color='.25', zorder=-10)

ax.plot(X, Y1, c='C0', lw=2.5, label="Blue signal", zorder=10)
ax.plot(X, Y2, c='C1', lw=2.5, label="Orange signal")
ax.plot(X[::3], Y3[::3], linewidth=0, markersize=9,
        marker='s', markerfacecolor='none', markeredgecolor='C4',
        markeredgewidth=2.5)

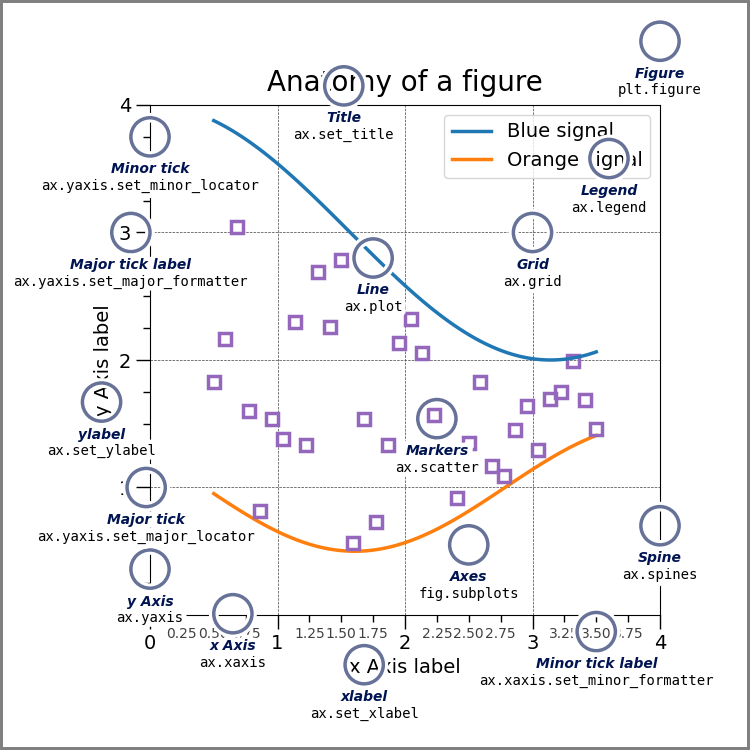

ax.set_title("Anatomy of a figure", fontsize=20, verticalalignment='bottom')
ax.set_xlabel("x Axis label", fontsize=14)
ax.set_ylabel("y Axis label", fontsize=14)
ax.legend(loc="upper right", fontsize=14)


# Annotate the figure

def annotate(x, y, text, code):
    # Circle marker
    c = Circle((x, y), radius=0.15, clip_on=False, zorder=10, linewidth=2.5,
               edgecolor=royal_blue + [0.6], facecolor='none',
               path_effects=[withStroke(linewidth=7, foreground='white')])
    ax.add_artist(c)

    # use path_effects as a background for the texts
    # draw the path_effects and the colored text separately so that the
    # path_effects cannot clip other texts
    for path_effects in [[withStroke(linewidth=7, foreground='white')], []]:
        color = 'white' if path_effects else royal_blue
        ax.text(x, y-0.2, text, zorder=100,
                ha='center', va='top', weight='bold', color=color,
                style='italic', fontfamily='Courier New',
                path_effects=path_effects)

        color = 'white' if path_effects else 'black'
        ax.text(x, y-0.33, code, zorder=100,
                ha='center', va='top', weight='normal', color=color,
                fontfamily='monospace', fontsize='medium',
                path_effects=path_effects)


annotate(3.5, -0.13, "Minor tick label", "ax.xaxis.set_minor_formatter")
annotate(-0.03, 1.0, "Major tick", "ax.yaxis.set_major_locator")
annotate(0.00, 3.75, "Minor tick", "ax.yaxis.set_minor_locator")
annotate(-0.15, 3.00, "Major tick label", "ax.yaxis.set_major_formatter")
annotate(1.68, -0.39, "xlabel", "ax.set_xlabel")
annotate(-0.38, 1.67, "ylabel", "ax.set_ylabel")
annotate(1.52, 4.15, "Title", "ax.set_title")
annotate(1.75, 2.80, "Line", "ax.plot")
annotate(2.25, 1.54, "Markers", "ax.scatter")
annotate(3.00, 3.00, "Grid", "ax.grid")
annotate(3.60, 3.58, "Legend", "ax.legend")
annotate(2.5, 0.55, "Axes", "fig.subplots")
annotate(4, 4.5, "Figure", "plt.figure")
annotate(0.65, 0.01, "x Axis", "ax.xaxis")
annotate(0, 0.36, "y Axis", "ax.yaxis")
annotate(4.0, 0.7, "Spine", "ax.spines")

# frame around figure
fig.patch.set(linewidth=4, edgecolor='0.5')

plt.savefig("mpl_anatomy.pdf")

content = r"""
\begin{figure}[htp] \centering{
\includegraphics[scale=1.0]{mpl_anatomy.pdf}}
\caption{The anatomy of a matplotlib figure.}
\end{figure}
"""
doc.append(NoEscape(content))

doc.build().generate_pdf('matplotlib_examples', clean_tex=True, compiler='pdflatex')

findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.
findfont: Font family 'Courier New' not found.

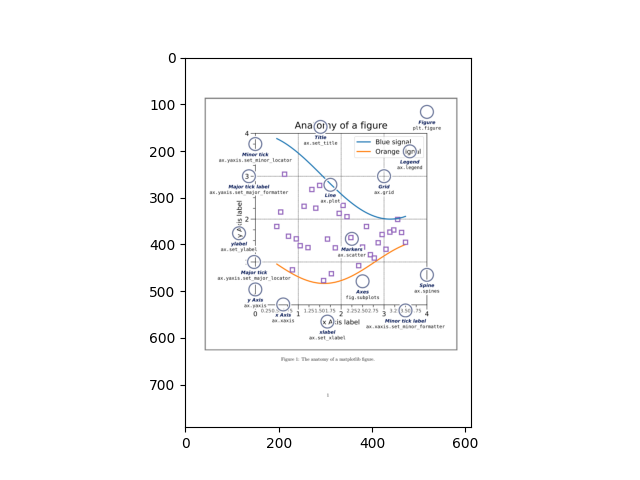

import pypdfium2 as pdfium
import matplotlib.pyplot as plt

pdf = pdfium.PdfDocument("matplotlib_examples.pdf")
page = pdf.get_page(0)
pil_image = page.render_topil()
plt.imshow(pil_image)

<matplotlib.image.AxesImage object at 0x7f33c7b37af0>
